STUDIO V : ECO HOUSE

FALL 2020        INTRUCTOR : JULEE HERDT


RE-THINK THE WAY BUILDINGS INTERACT WITH THEIR ENVIRONMNET

     There is so much waste in urban areas; dark abandon corners and alleys, car exhaust, plastic bags, rotten food, BIG Gup cups, outdated electronics, the list goes on. Wasted space as well wasted material. The city is an environment that is vastly out of balance. In healthy functioning ecosystems waste is non- existent.  One's waste is another's food. The VIA-DUCT is a structure that takes air pollutants and filters it into clean air. It sits between busy multi-lane highways and roads in the lively core of Denver. It not only utilizes wasted space but takes the wasted pollutants from the cars around it and turns it into clean air. It plays an positive and active role it it's environment. Like an oyster it feeds off the bottom of the polluted city, yet holds a pearl with in:
a oasis hideaway for one to dwell.

A BUILDING THAT ACTIVELY IMPROVES IT'S LOCAL ENVIRONMENT

INSTEAD OF DEGRADING IT

CONCEPT DEVELOPMENT


The site is surrounded by constant movement, with busy highways above and below

Iterations were inspired by site, exploring fluid and continuous forms

PARTI DIAGRAMS

DIA-SMOG copy2.png
Program is separated by Air Filtration and Living Areas
2 Exterior and 1 Interior dispersion zones

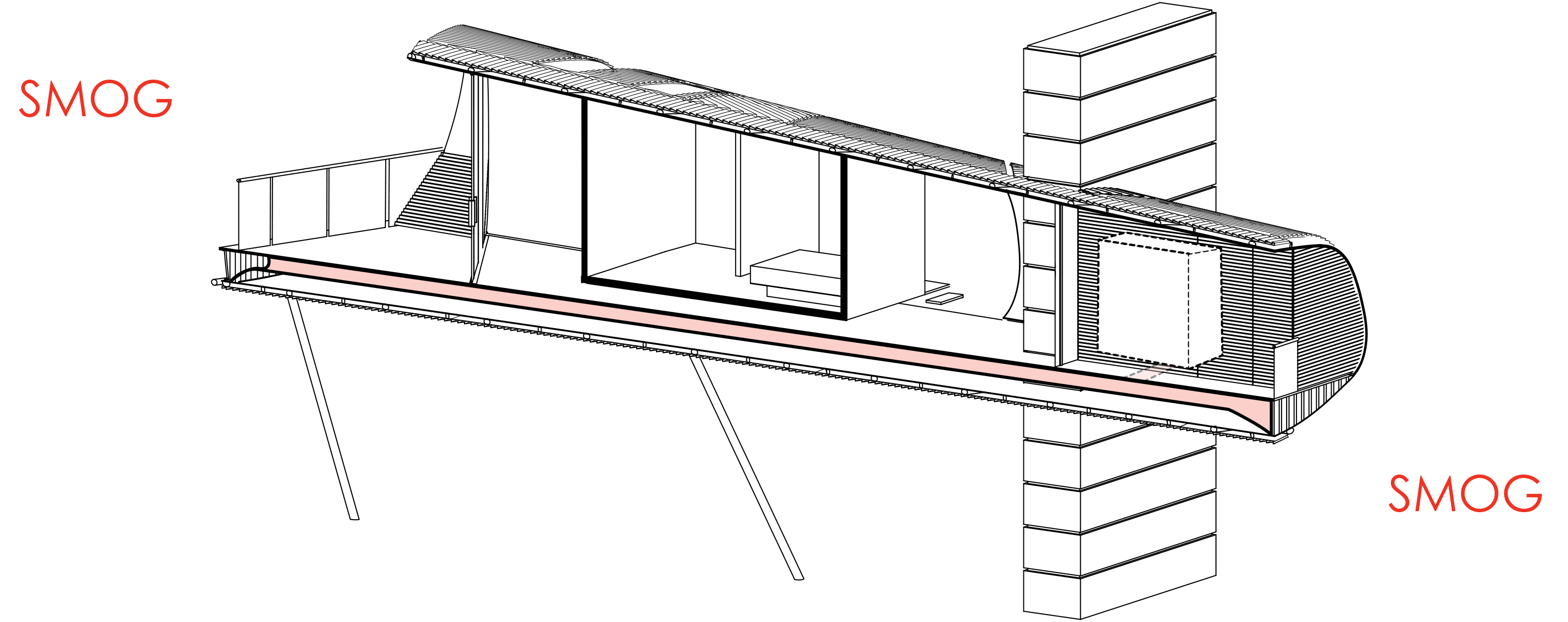

Air is taken in from each end of the structure while the ionization takes place in a covered exterior room
Passive air filtration in done by planted trees and grass on the exterior and moss wall on the interior

SITE PLAN

At The Confluence of Urban Rivers

URBAN RIVERS copy.jpg

DENVER, COLORADO

FLOOR PLAN

5
KEY
Bed & Bath
Kitchen & Dining
Study
Ionization Filter
Outdoor Patio
Storage
1
2
3
4
5
6
3
2
4
6
1
2
5

ELEVATION

elevation [1.0}.png

DIAGRAMATIC SECTION

SMOG IONIZATION TECH
Screen Shot 2020-12-03 at 9.22.02 AM.png
Ionization technology is able to filter 75%-80% of SMOG from the air. This includes Nitrogen Oxides, Sulphur Oxides, and Other VOCs.. A large contributor to ozone problems in Denver Colorado.

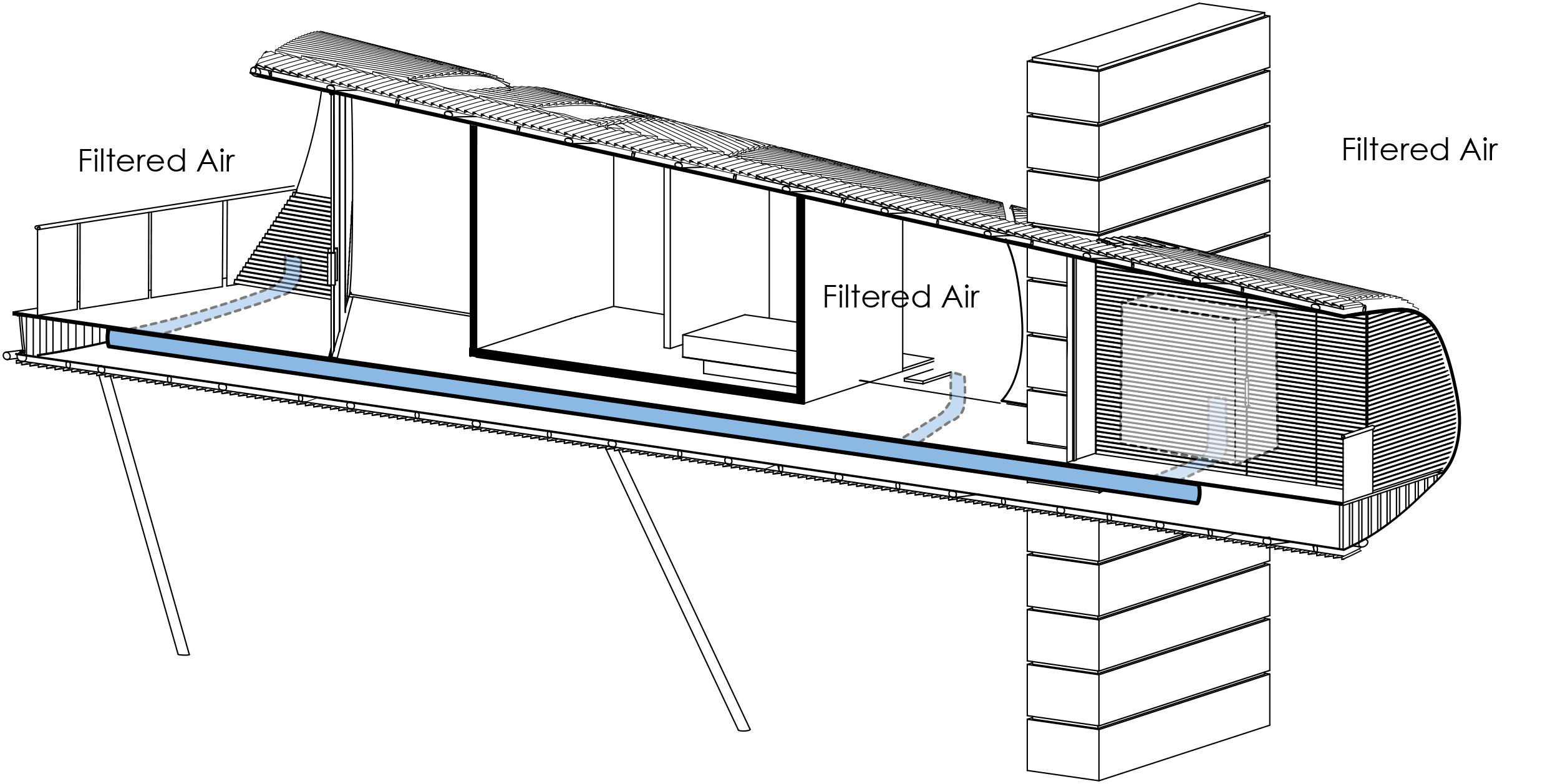

Clean air is filtered back into the local environment to improve the pollution in local urban area
Screen Shot 2020-12-03 at 10.02.33 AM.pn
Screen Shot 2020-12-03 at 9.32.20 AM.png
2d6104bdaaa7d6265fc717b780c2ba97_edited.

MATERIALS & ASSEMBLY

CARBON FIBER FRAME

Use of light weight and high strength carbon fiber to reduce loads.

SEQUESTERED CO2 FACADE

"Made of Air" is made form 80% atmospheric co2, captured through Bio-Char of plants

SPRAY FOAM INSULATION & PLYWOOD SHEATHING

Spray foam insulation helps stabilize the structure while the plywood sheathing act for sheer and interior finish.
night app2.jpg

URBAN OASIS


BED & BATH

look b 2 2.jpg

KITCHEN & LIVING
